IBIX 3

Blasting Equipment NANO 3

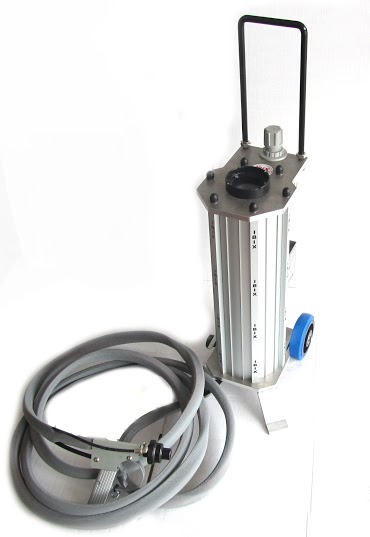

The aero-abrasive cleaning system NANO IBIX 3 is a special kit for samples, ideal also for small cleaning treatments and spot blasting.
It is equipped with a 3 litre tank that can be fully emptied, making the change of abrasive easier and avoiding the risk of mixing different blasting materials; this is possible because of a special plastic funnel installed inside the tank of the IBIX machine.

The kit NANO IBIX 3 is available in three versions:

NANO Dry IBIX® 3

Kit equipped with a 3 liters tank that can be fully emptied, making the change of abrasive easier and avoiding the risk of mixing different blasting materials; this is possible because of a special plastic funnel installed inside the tank of the IBIX machine; the kit is available with a suitcase of abrasives for samples.

NANO H2O

It is a double functioning (dry/wet) aero-abrasive device, equipped with a special “quick connect” system and two easily interchangeable pistols, a standard H2O and Helix.

NANO IBIX® 3 with pen

The Nano Ibix reveals its top effectiveness with the microtip Ibix; this tool allows the operator to work on the smallest details with the maximum comfort; it is made of tungsten carbide, a very resistant and durable material compared to ceramic tips.

Technical Characteristics

• Operating Pressure: 0.2 to 8 bar
• Particle Size: 20-350 mesh
• Compressed Air requirements: minimum 300 l/min (10.5cfm)
• Standard Nozzle: 3mm
• Abrasive tank capacity: 3 l
• Weight (with tank empty): 10 kg approx.
